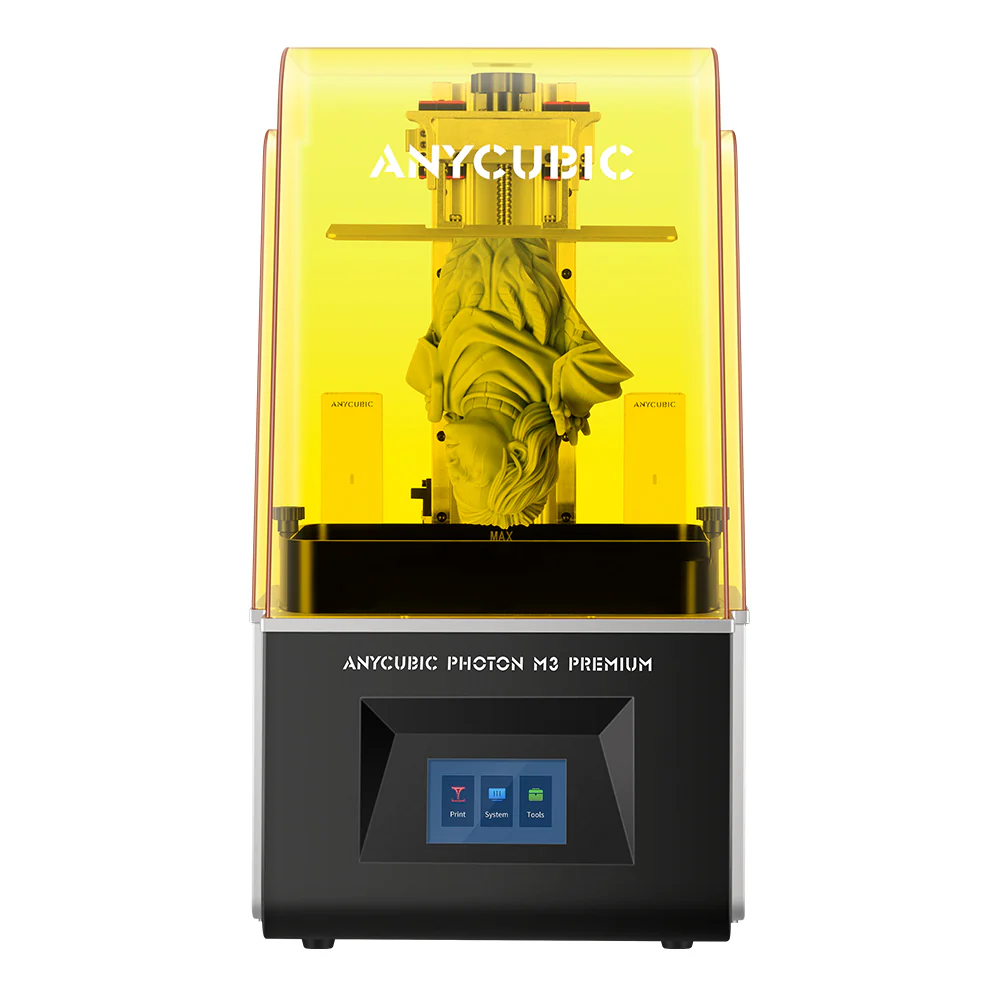

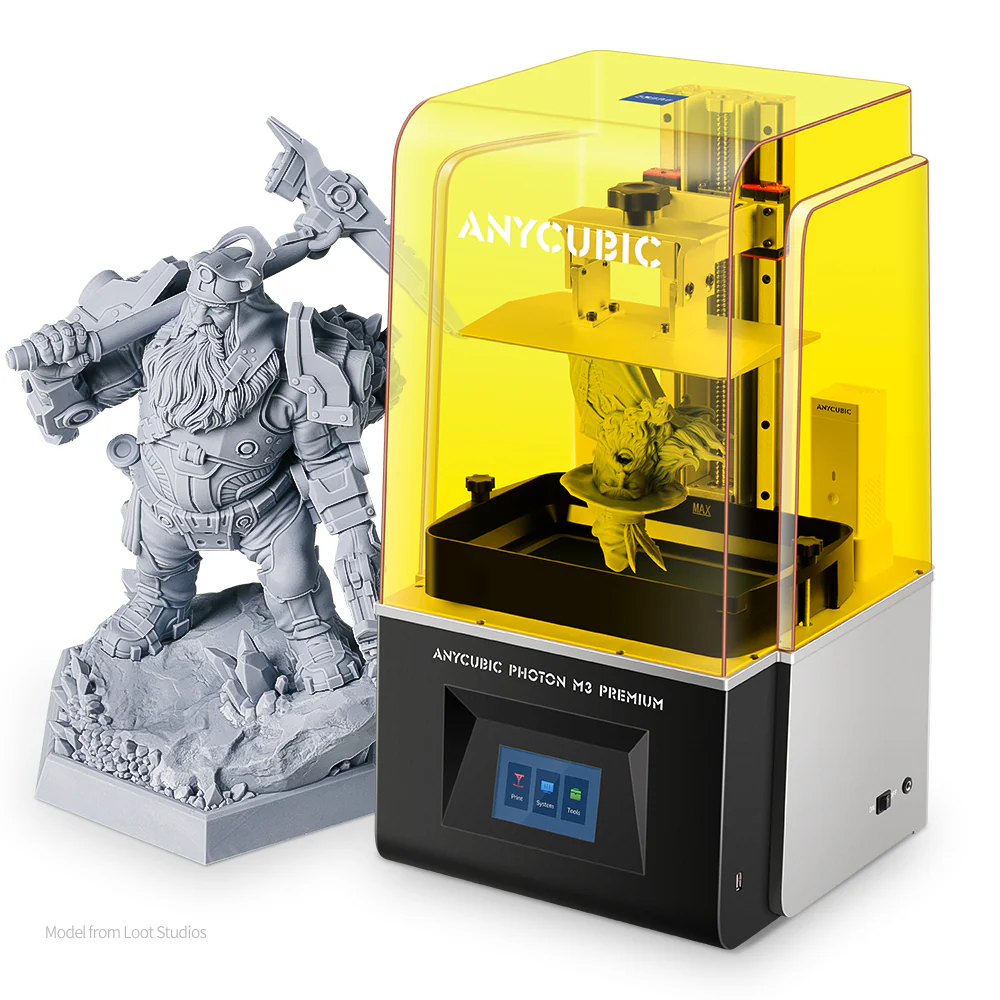

Product Description
- 8K High Resolution
- 28.5μm XY Resolution.
- Anycubic LighTurbo 2.0
- Brand New Released Light Source Technology.
- 10″ Monochrome LCD Screen
- 380:1 High Contrast Ratio.
- Ball Screw Double Threaded Rods
- 95mm/hour Max Printing Speed.
- Technical Specifications
- ● ZAxis: Double liners with 5 μm accrace
- ● Resin Tank: Unibody design with scale lines
- ● Build Platform: Laser Carved Metal
- ● Exposure Screen: 10.1″ monochrome(7680×4320 px, 28.5μm XY Resolution)
- ● Light Source: Anycubic LighTurb 2.0 Light Source
- ● Power Supply: 150W rated power
- ● Control Panel: 4.3″ TFT touch-control
- ● Data input: USB Type-A2.0/ Wi-Fi Port
- ● Machine Leveling: 4-point manual leveling
- ● Printing Speed: ≤95 mm or 3.7in./hr.
- ● Printing Volume: 6.7L/226.5oz.
- ● Machine Dimensions: 25*13*14 in. / 630*330*350 mm (HWD)
- ● Printing Dimensions: 9.9*4.9*8.6 in. / 250*123*219 mm(HWD)
- ● Machine Weight: 19kg / 41lb.
-
*Before using Anycubic APP, download the updated
firmware if the printer firmware version is 1.0.2.0 or
lower.
- 8K High Precision Resolution
- Designed with a 10-inch monochrome LCD screen with a 7680×4320 resolution and an XY-resolution of
28.5μm, respectively 216% and 40% higher than the Anycubic Photon Mono 4K. The models’ sharp corners
and delicate edges are perfectly printed, revealing the beauty of sharper details.
- Details Beyond 8K
- The patented self-innovated LightTurbo 2.0 light source solution provides the high light uniformity
of the COB light source system while eliminating stray light, creating a delicate and smooth model
surface.
- Upgraded Cooling System
- The combination of software and hardware automatically detects the temperature. It adjusts the speed
of the cooling fan according to ensure that the printing environment is kept within 65℃, effectively
improving the light source’s lifespan.
- Large Volume Brings Unlimited Creativity
- The printing size of Anycubic Photon M3 Premium is 250*220*120 mm (HWD), and the maximum printing
volume reaches 6.7L, which provides more creative space for creators while ensuring printing
accuracy.
- Stable Double Threaded Rods
- Compared to the T-shaped threaded rod, the ball screw double-threaded rods provide 0.005mm of
improved structural accuracy, which is only half of the ordinary T-shaped rod printer, significantly
reducing the layer line effects. The double-threaded rods minimize the lifting resistance of the
platform while printing by adopting the rolling friction principle, making the printing speed even
faster.
- Anycubic App | 3D Printing in just One Touch
- With Anycubic APP, users can select models, slice
online, print in one touch, and monitor printing progress with their smartphones. Anycubic APP,
which allows you to print anywhere, anytime and feel the fun of realizing your creativity with
just one touch, also comes with a practical help center. Anycubic APP is available on Google Play,
App Store, Anycubic official website.
- Efficient Air Purification
- The double air-purifiers system is embedded with high-density activated carbon inside the air
purifiers. The symmetrical double air intake design enlarges the air inlet and outlet area by 1.5
times, achieving 80% odor removal within 10 minutes.
- Larger Vat, Less Refill
- A 60% larger resin tank eliminates the need to refill resin constantly when printing large 3D
models. Compared to traditional FEP film, the application of NFEP film make it easier to detach the
prints, increasing the printing success rate by 10%.
- Unlimited Applications
- Anycubic Photon M3 Premium 3D printer can easily meet various printing needs, enabling lower cost,
larger volume, and higher precision model printing.
Parts List
Funnel
Glove
Mask
Tool set
Platform
Power-cord
Resin Vat
Scraper
User manual
USB memory
Screen protector
Levelling paper
WIFI Antenna
AirPure
|
|
|
|
| Machine Weight | 19kg | 11kg | 21kg |
| Machine Size | 630x330x350mm | 475*290*360mm | 596*400*408mm |
| LCD Resolution | 7680x4320px(8k) | 5760x3600px (6k) | 6480x3600px (7k) |
| LCD Size | 10.1’’ monochrome | 9.25’’ monochrome | 13.6’’ monochrome |
| XY Resolution | 28.5 microns | 34 microns | 46 microns |
| Z axis Accuracy | 5 microns | 10 microns | 10 microns |
| Build volume | 250x123x219mm(6.7L) | 245*197*122mm(5.9L) | 300*298*164mm(14.7L) |
-
-
- Photon M3
- 7,6″ 4K+ LCD
- Build volume [LxBxH]: 163 x 102 x 180 mm
- Material: 405nm UV Resin
- Printing speed: 50mm/h
-
-
- Photon M3 Plus
- 9,25″ 6K LCD
- Build volume [LxBxH]: 197 x 122 x 245 mm
- Material: 405nm UV Resin
- Printing speed: 100mm/h
-
- Photon M3 Max
- 13,6″ 7K LCD
- Build volume [LxBxH]: 425 x 269 x 256 mm
- Material: 405nm UV Resin
- Printing speed: 60mm/h
