Sorry, Anycubic Photon Zero is sold out.
Upgrade to our latest model Anycubic Photon Mono 2.
Product Description
- 16x anti-aliasing
- Highly detailed.
- High Precision
- Combined with a linear rail.
- Quick FEP Replace
- Simple and quick to replace.
- Marks in Resin Vat
- Easily see the resin with a quick glance.
- Technical Specifications

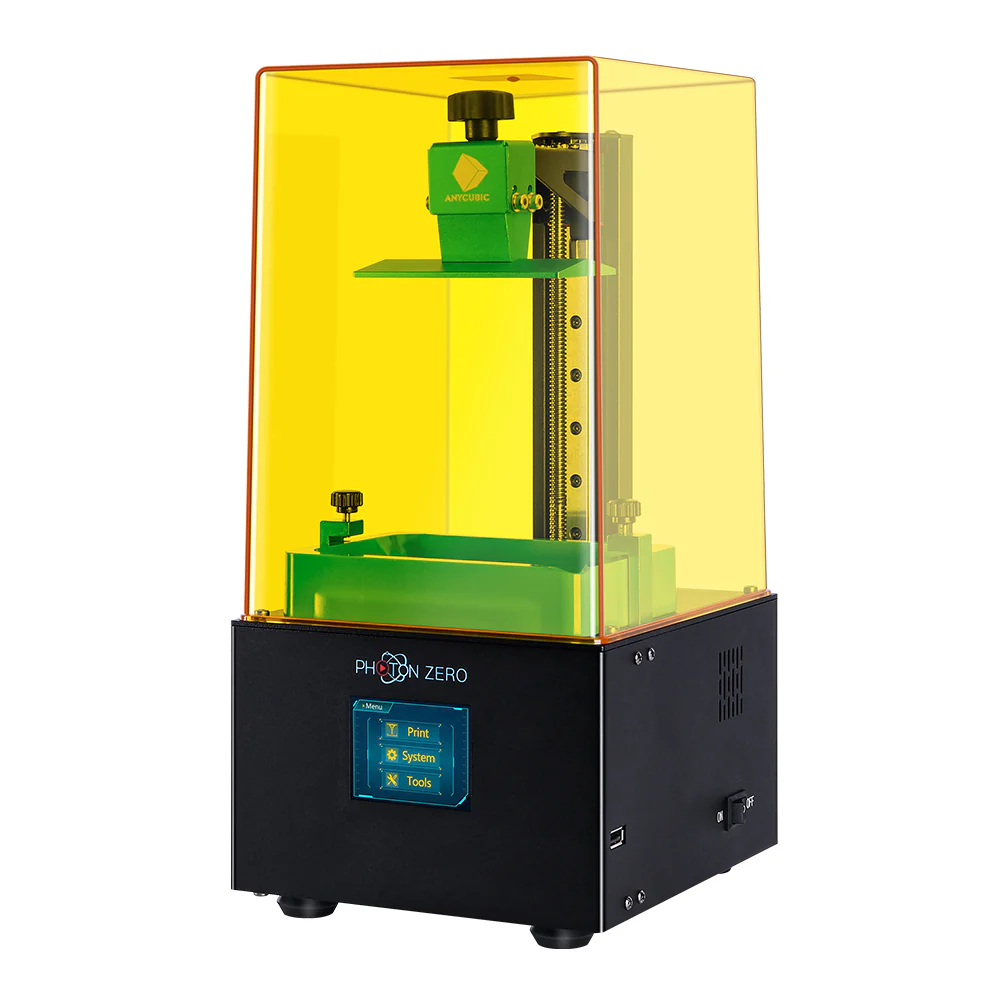

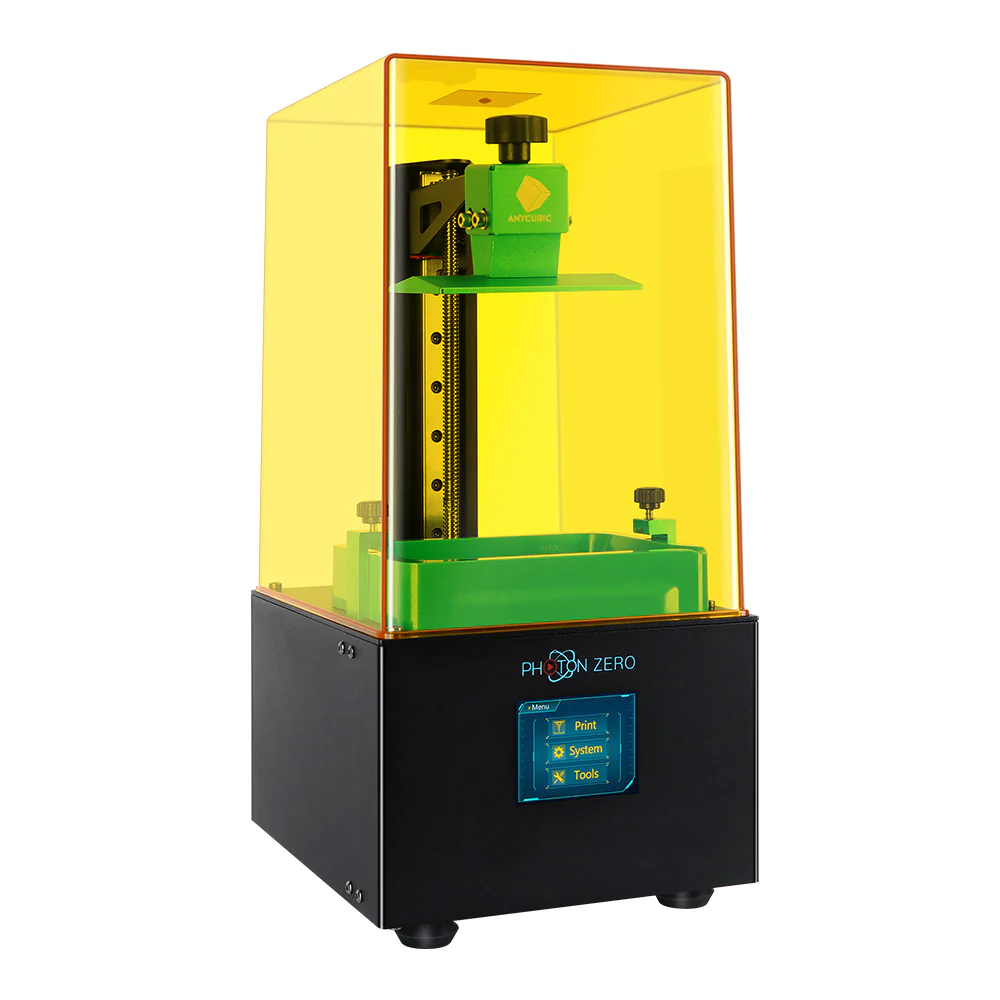

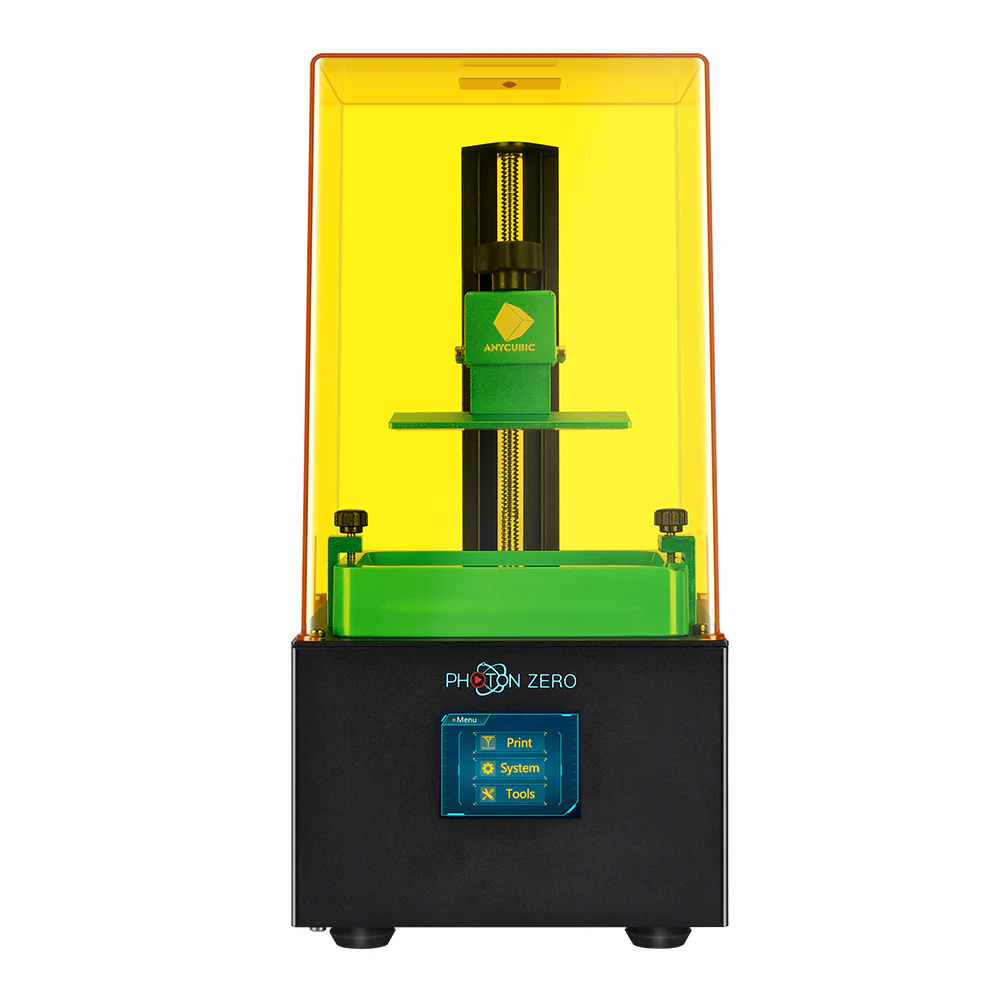

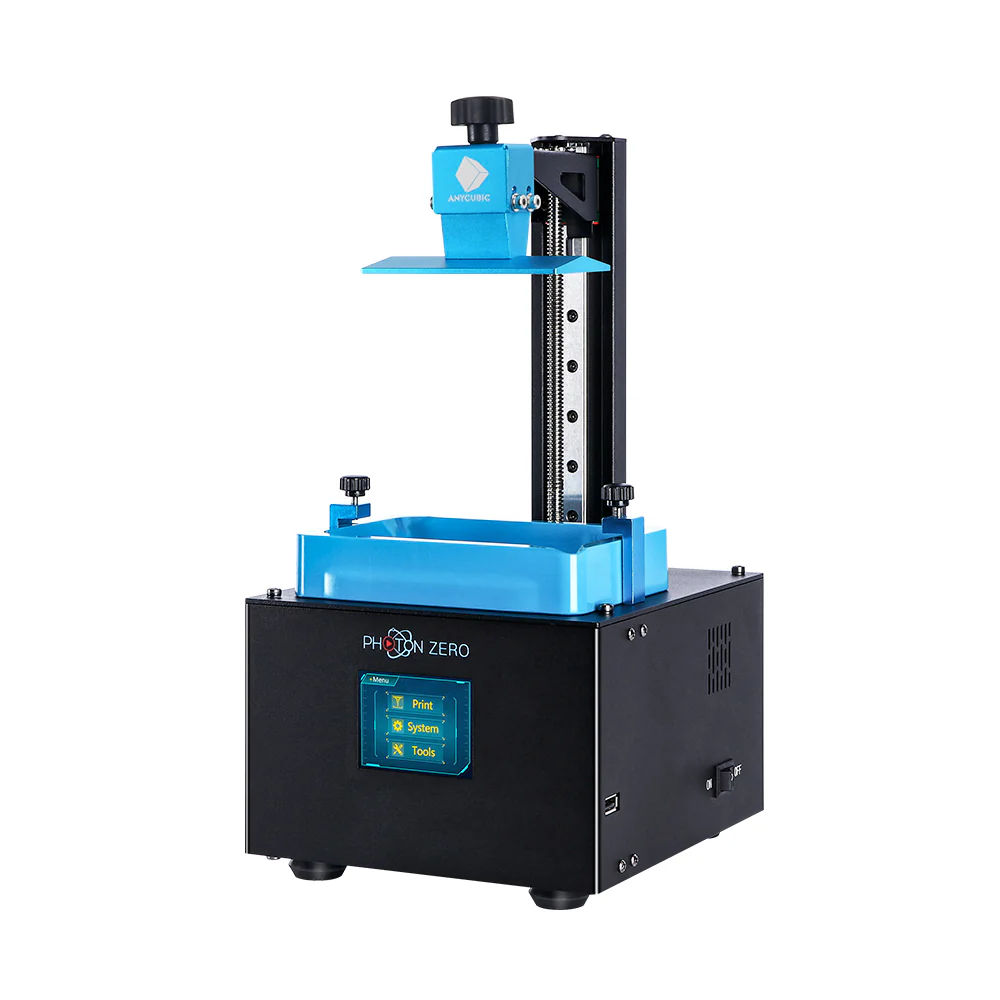

- ● Machine: Anycubic Photon Zero
- ● Technique: LCD-based SLA
- ● Light Source: 405nm
- ● XY Res.: 0.1155mm, 854*480p
- ● Z Axis Res.: 0.01mm
- ● Layer Res.: 0.01~0.2mm
- ● Printing Speed: 30mm(H)/hour
- ● Power: 30W
- ● Materials: 405nm UV resin
- ● Machine size: 180mm(L)*195mm(W)*367mm(H)
- ● Printing Volume: 97mm(L)*54mm(W)*150mm(H)
- ● Weight: ~4.7kg
- High Precision

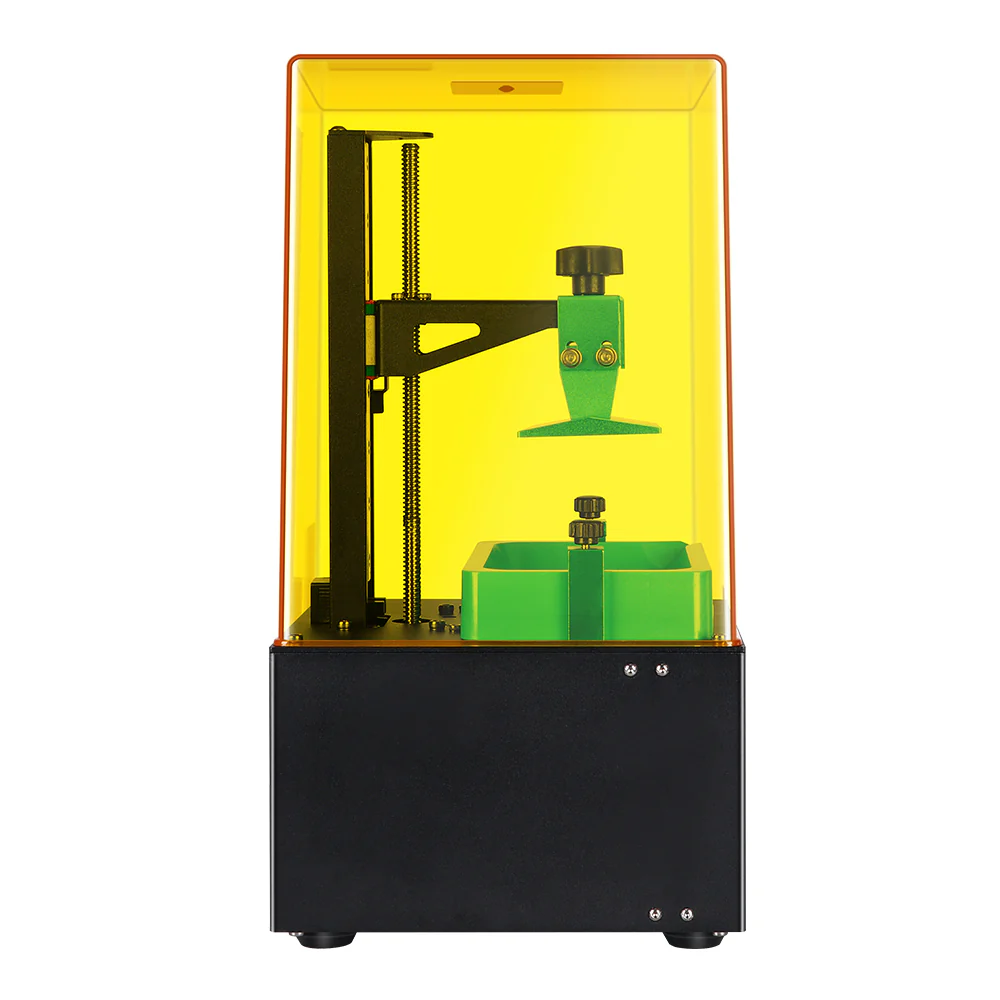

- A lead screw combined with a linear rail makes sure the z-axis moves smoothly
- Exposure Time Test
- Print 8 different models with differnt exposure parameters in just one print which allows you to compare and decide what will be the best exposure time.
- Quick FEP Replacement
- Simple and quick to replace, enjoy 3D printing with less fuss
- Upgraded UV Module
- Uniform distribution of UV light, parallel lights for quality results
- UV Cooling System
- Cooling device for stable printing performance
- Photon WorkShop
- Quickslicing, model hollowing & cutting, text fitting. Functions are constantly being updated
Parts List
Glove
Tool set
Funnel
User manual
Scraper
SD card reader
Service card
Power Adapter
|
|
|
|
| Printing Technology | LCD-based SLA Printing | LCD-based SLA Printing | FDM (Fused Deposition Modeling) |
| XY Resolution | 3840*2400 px | 5760*3600 px | None |
| Build Volume | 132mm*80mm*165mm | 197mm*122mm*245mm | 245*245*260mm |
| Max.Printing Speed | 50mm/h | 80mm/h | 100mm/s |
| Print Materials | 405nm UV Resin | 405nm UV Resin | PLA, ABS, PETG, Wood |
| Z axis Accuracy | 0.01mm | 0.01mm | 0.002mm |
-
- Photon
- LCD-based SLA
- Build Area: 115x65x155mm
- Filament:405nm UV Resin
- Diffusion Illuminant
- Single Z-axis
-
- Photon S
- LCD-based SLA
- Build Area: 115x65x165mm
- Filament:405nm UV Resin
- Matrix Illuminant
- Double Z-axis
-
- 4Max Pro
- FDM (Fused Deposition Modeling)
- Build Area: 270x205x205mm
- Filament: PLA, ABS, HIPS, PETG,
Wood and TPU - Titan Extruder
Suspended Filament Rack - Single Z-axis
