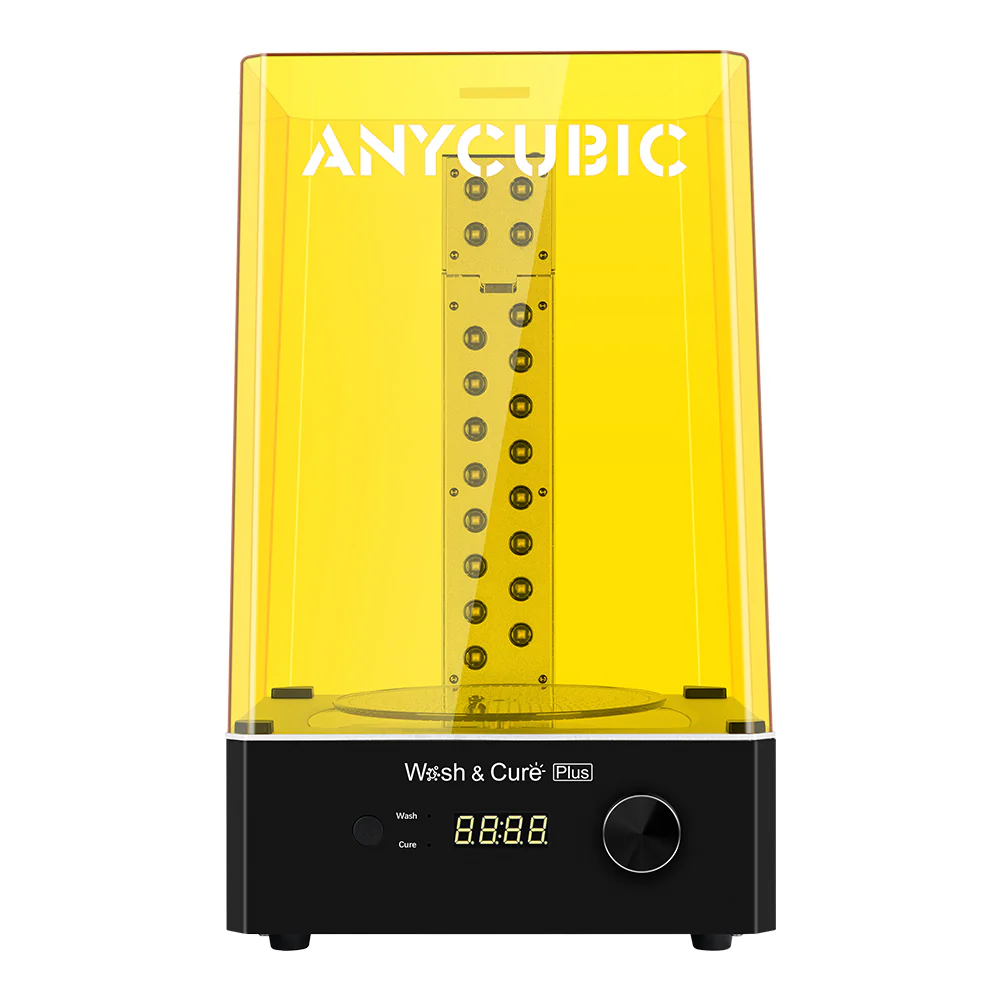

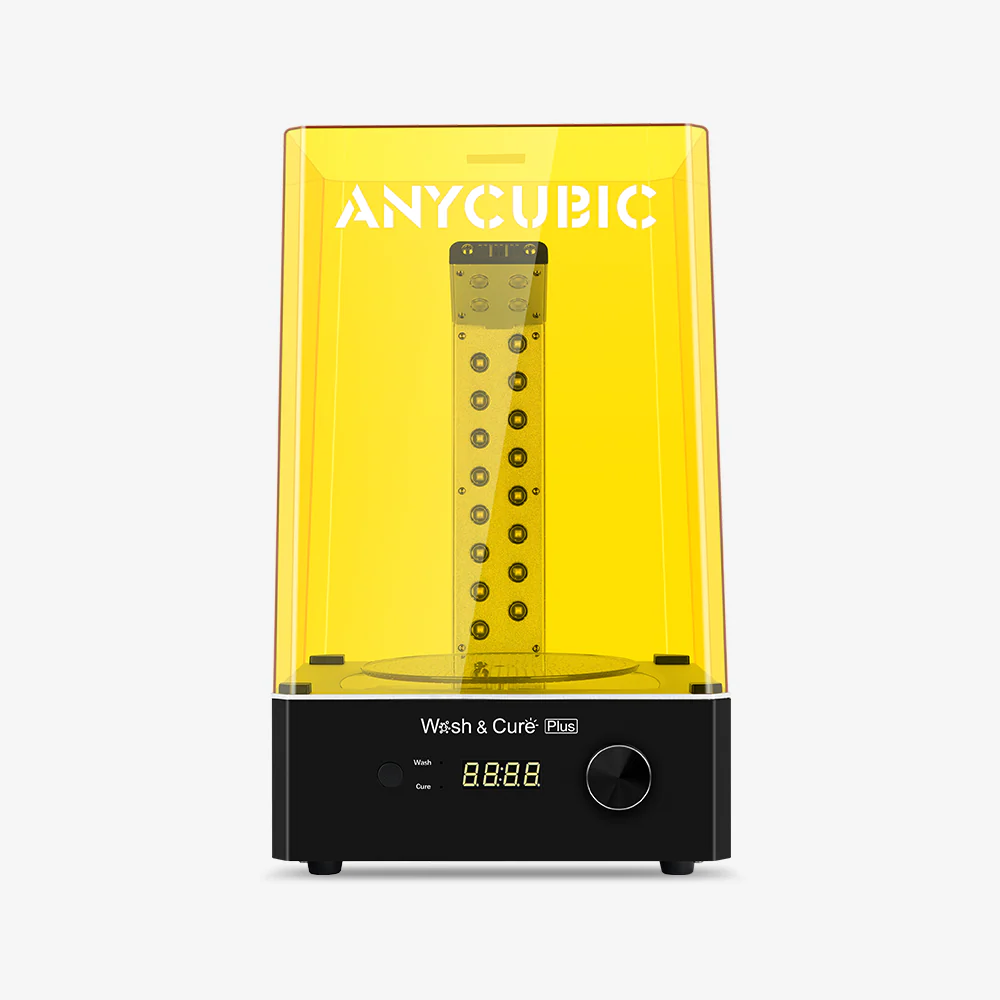

Product Description
- Larger-size
- Curing size: 190mm(D)*245mm(H)
- Wash Mode
- Stronger cleaning power

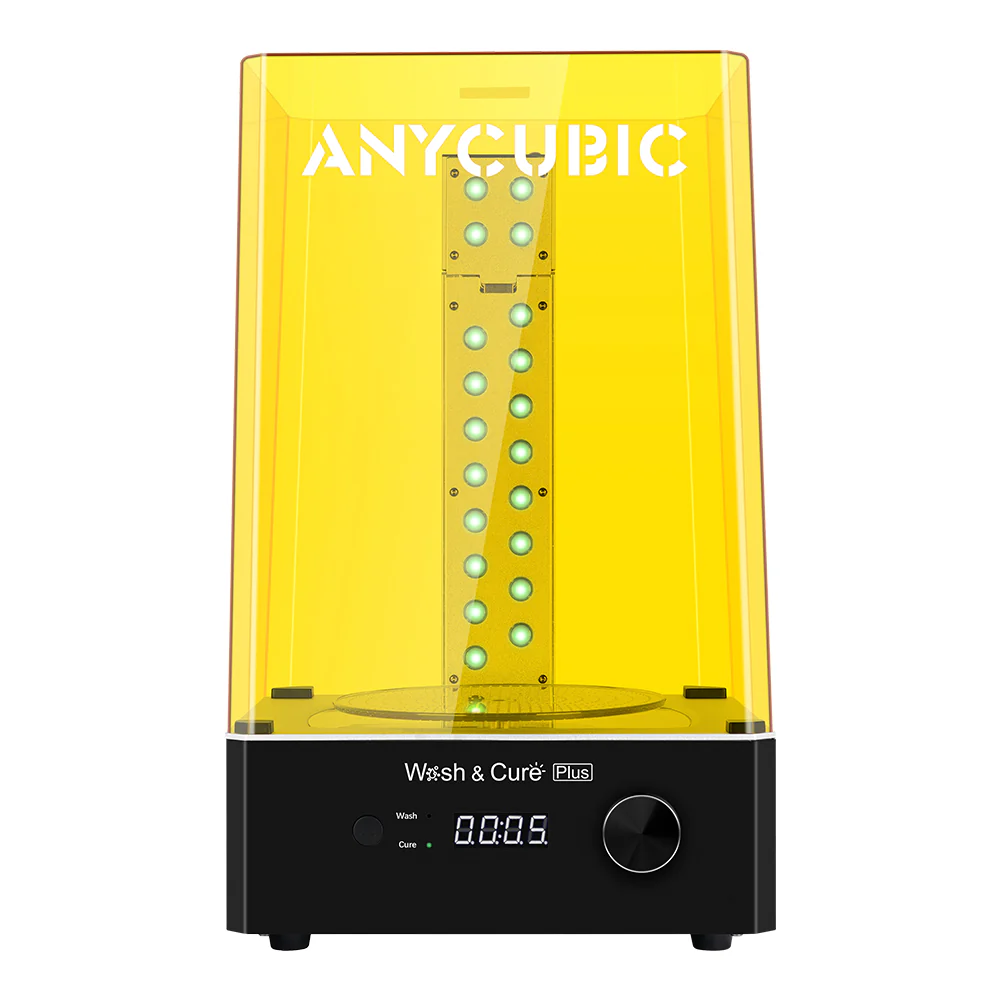

- Cure Mode
- 360°auto-rotating curing platform.
- L-shape Strip Light
- Solving the problem of model top part curing.
- Technical Specifications
- ● Machine: Wash and Cure
- ● Control method: Digital tube, LED indicator, Control knob
- ● Rated power: 40W
- ● Input voltage: AC110/240V 50/60Hz
- ● UV lights: 405nm
- ● Time selection: 1-60min
- ● Machine size: 290mm(L)*270mm(W)*479mm(H)
- ● Basket washing size: 192mm(L)*120mm(W)*290mm(H)
- ● Hanging cleaning size: 192mm(L)*120mm(W)*235mm(H)
- ● Curing size: 190mm(D)*245mm(H)
- ● Weight: ~6.5kg

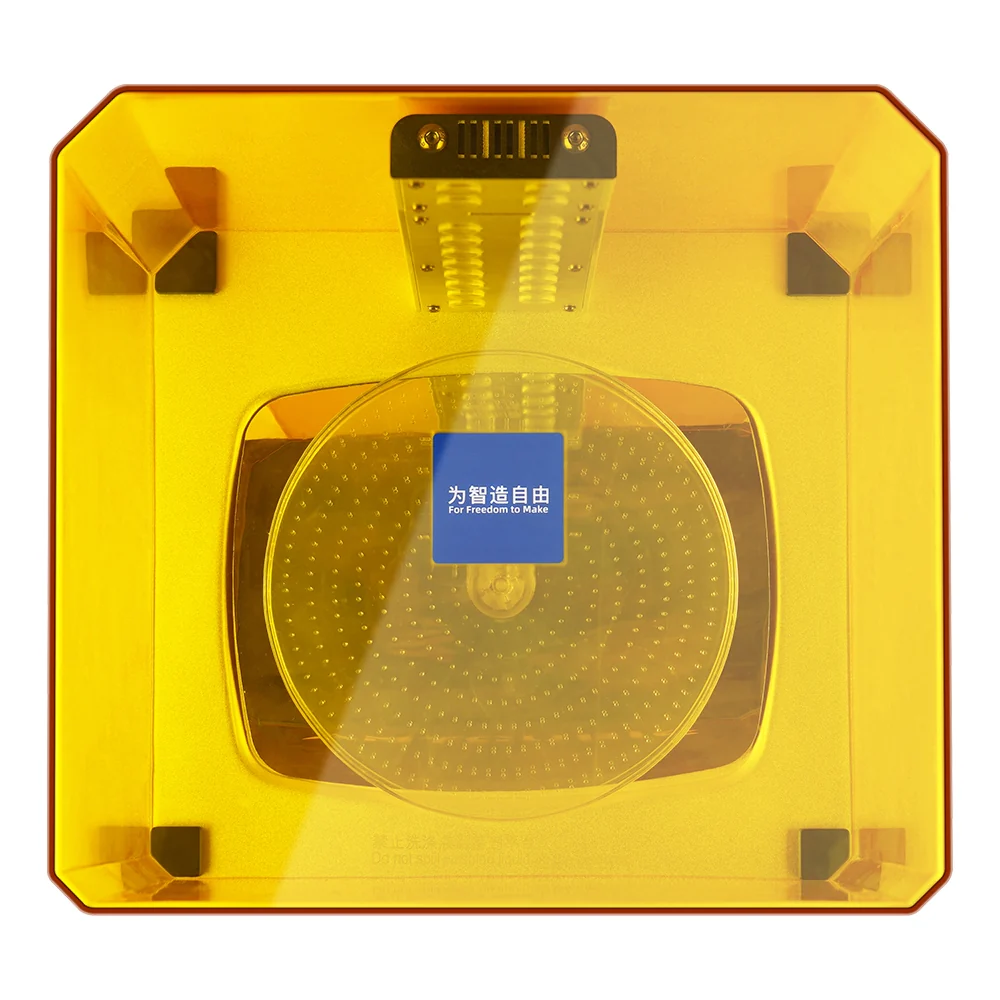

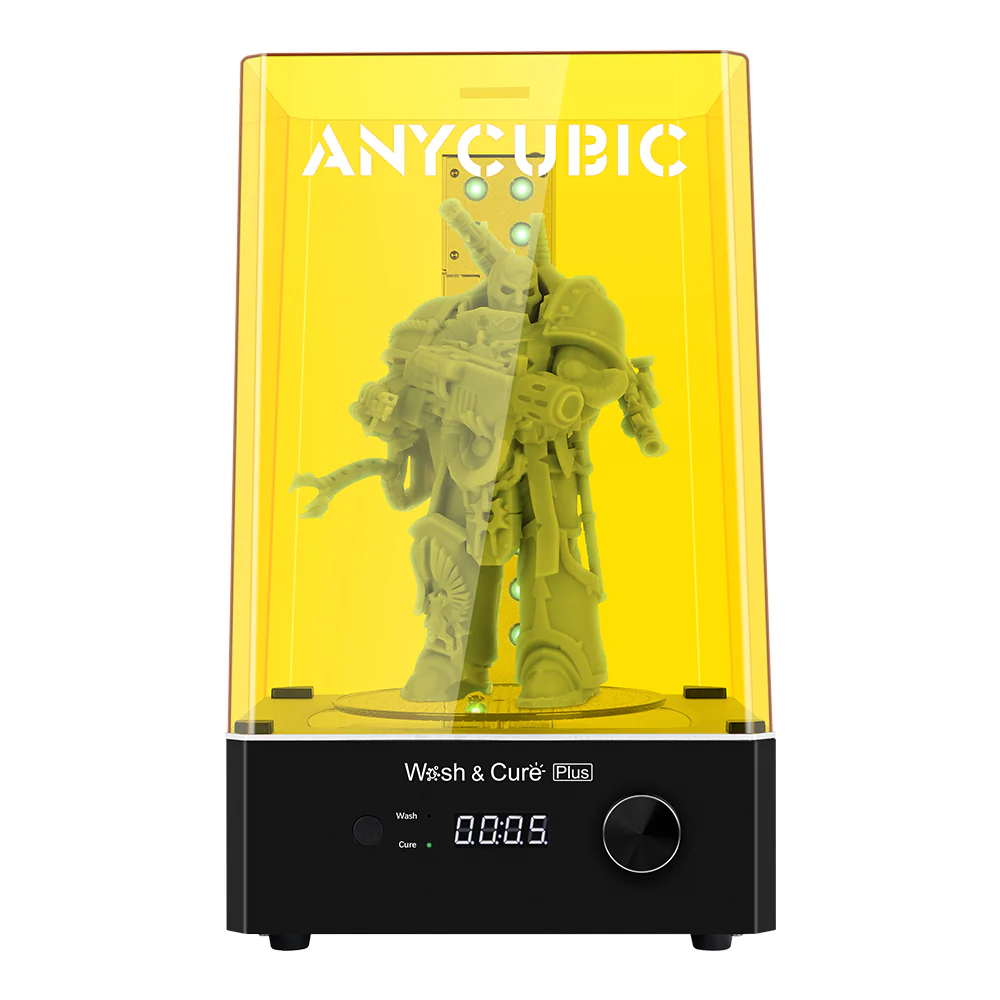

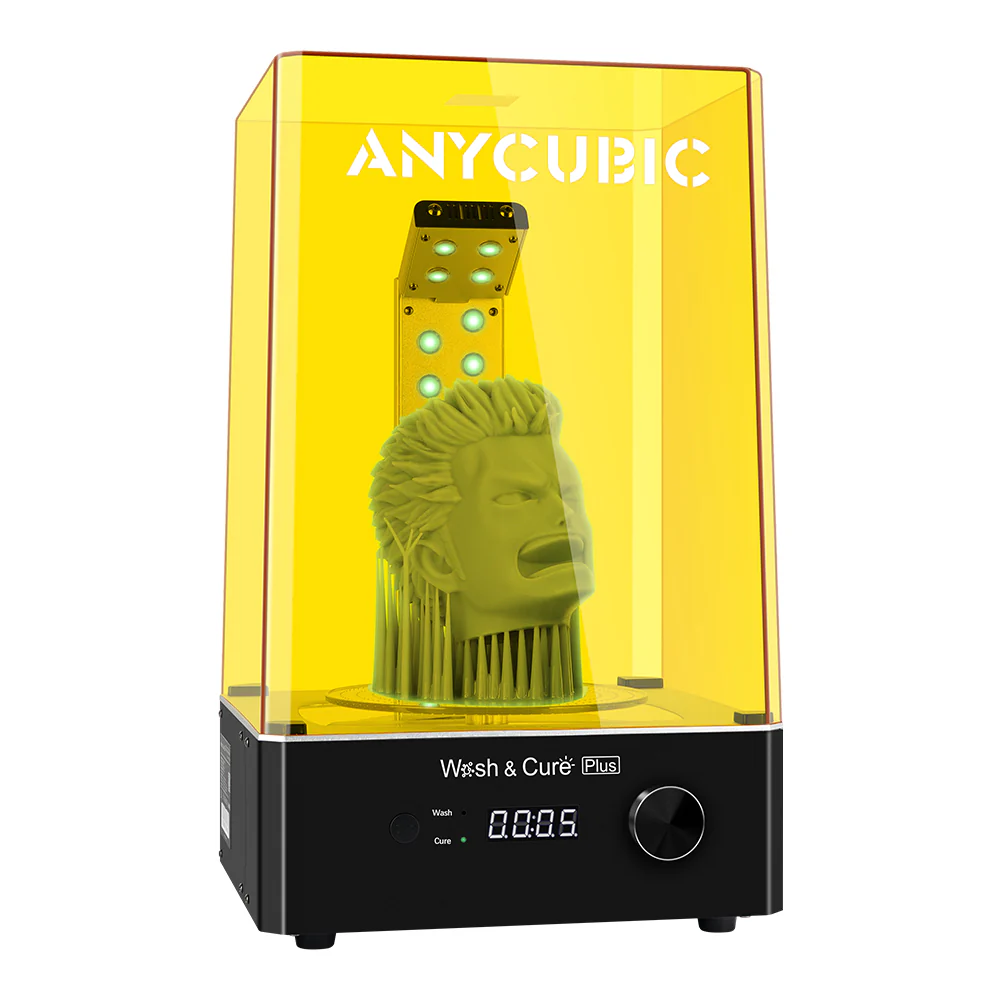

- 360° Curing
- The 360°auto-rotating curing platform, equipped with L-shape strip light and reflective mirror sticker, enables the machine to realize a real thorough curing.
- Upgraded UV Lamp Beads
- Added with optical lens, the UV light source can achieve more even irradiation and thorough curing.
- More Powerful Washing

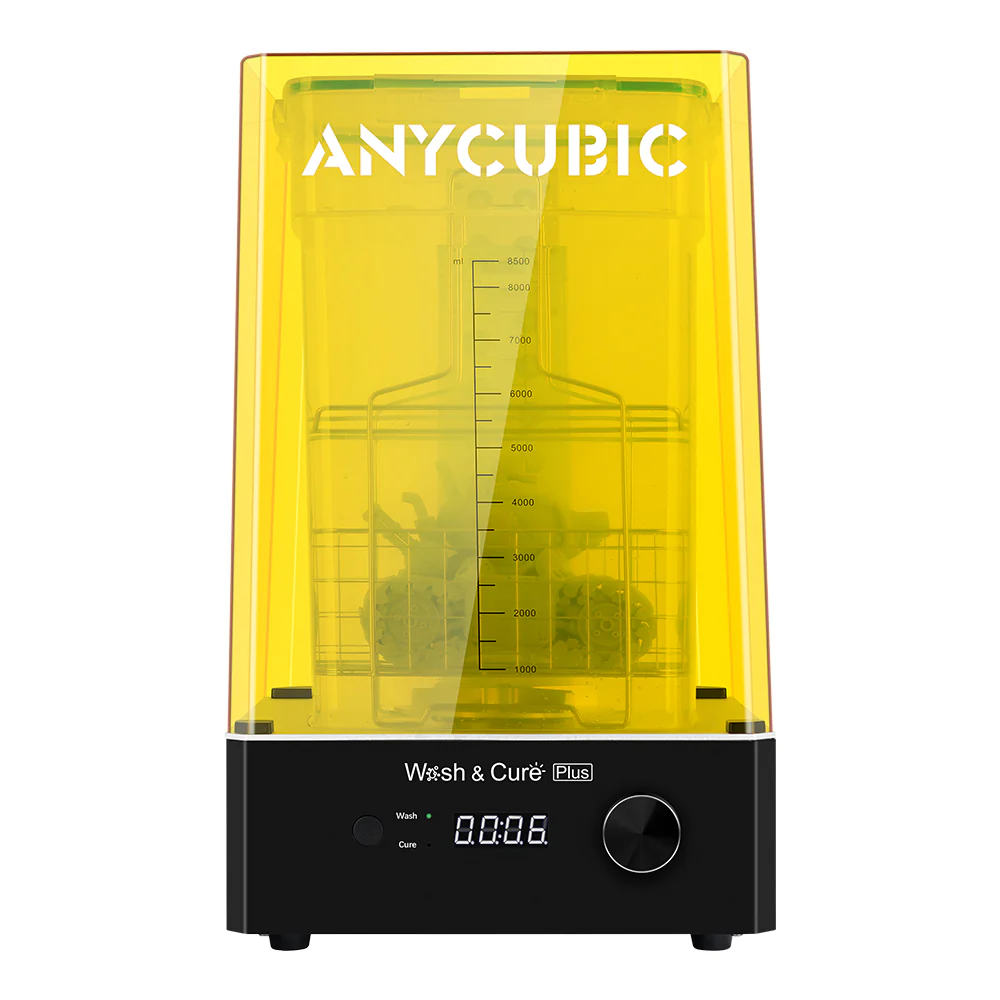

- Multiple washing methods can bring more flexible model cleaning and avoid contact with resin. Basket washing & Hanging cleaning
- Stronger Cleaning Power
- The super-large cleaning vortex allows the liquid to clean every part of the model, and supports washable resin model cleaning.
- Safer To Use
- Automatically pause when the cover is removed. In the curing mode, the machine will stop curing when the cover is removed to prevent UV light from causing harm to the human body.

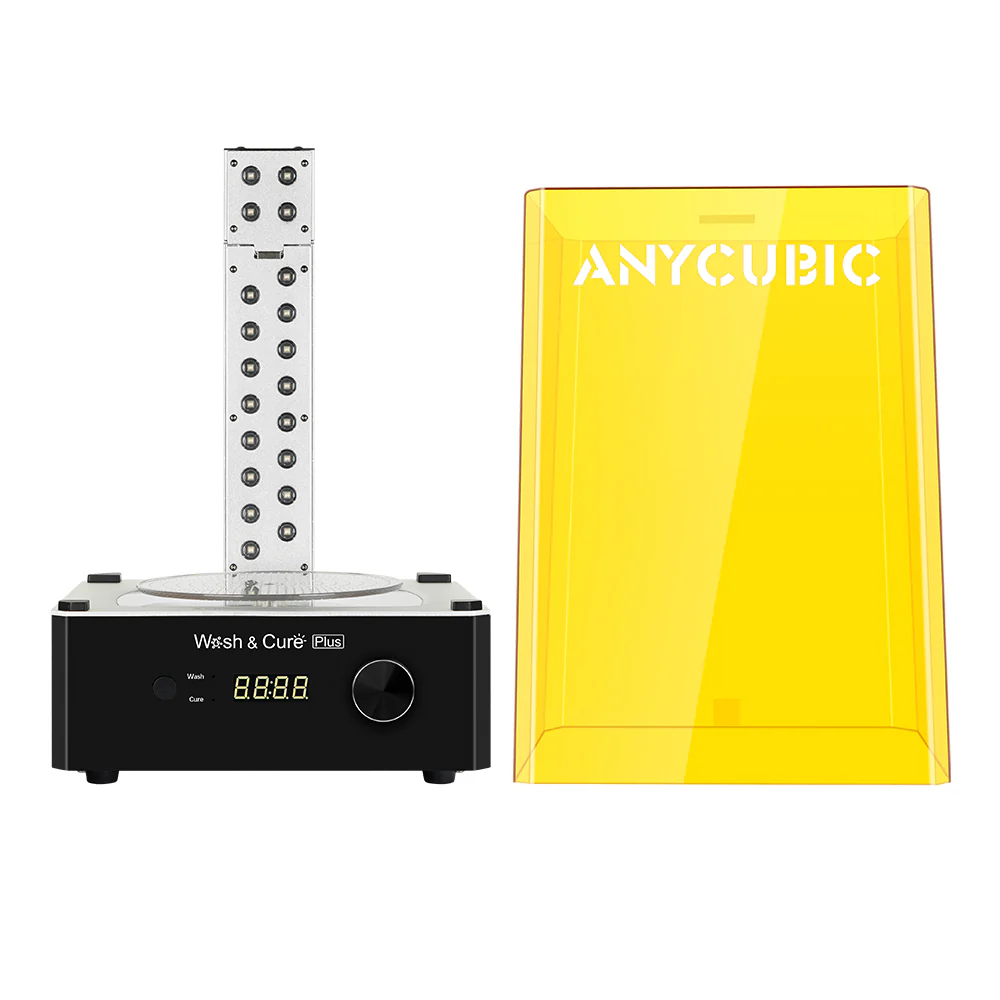

- Anti-UV light Cover
- The integrated anti-UV cover is able to block 99.95% 405nm wavelength UV light.
- Easier Mode Switching
- 1-60min time selections provide more choices for washing and curing.

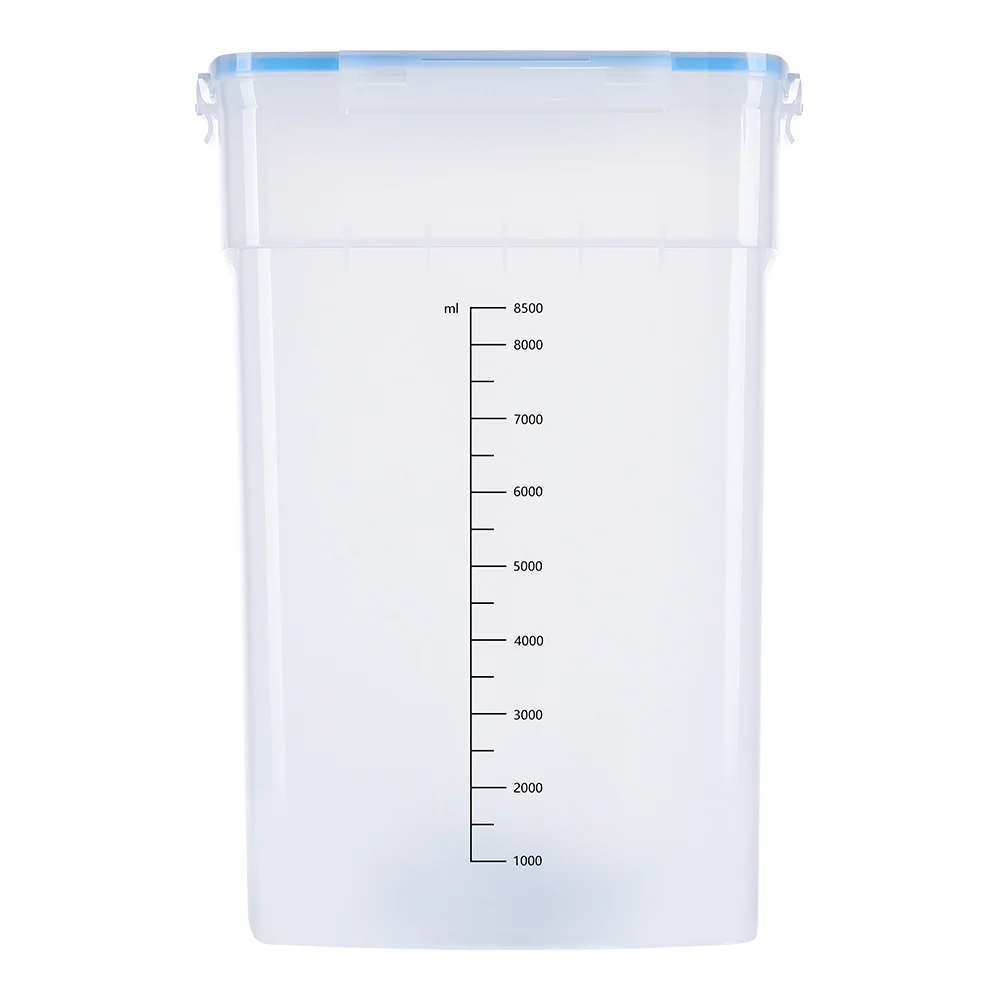

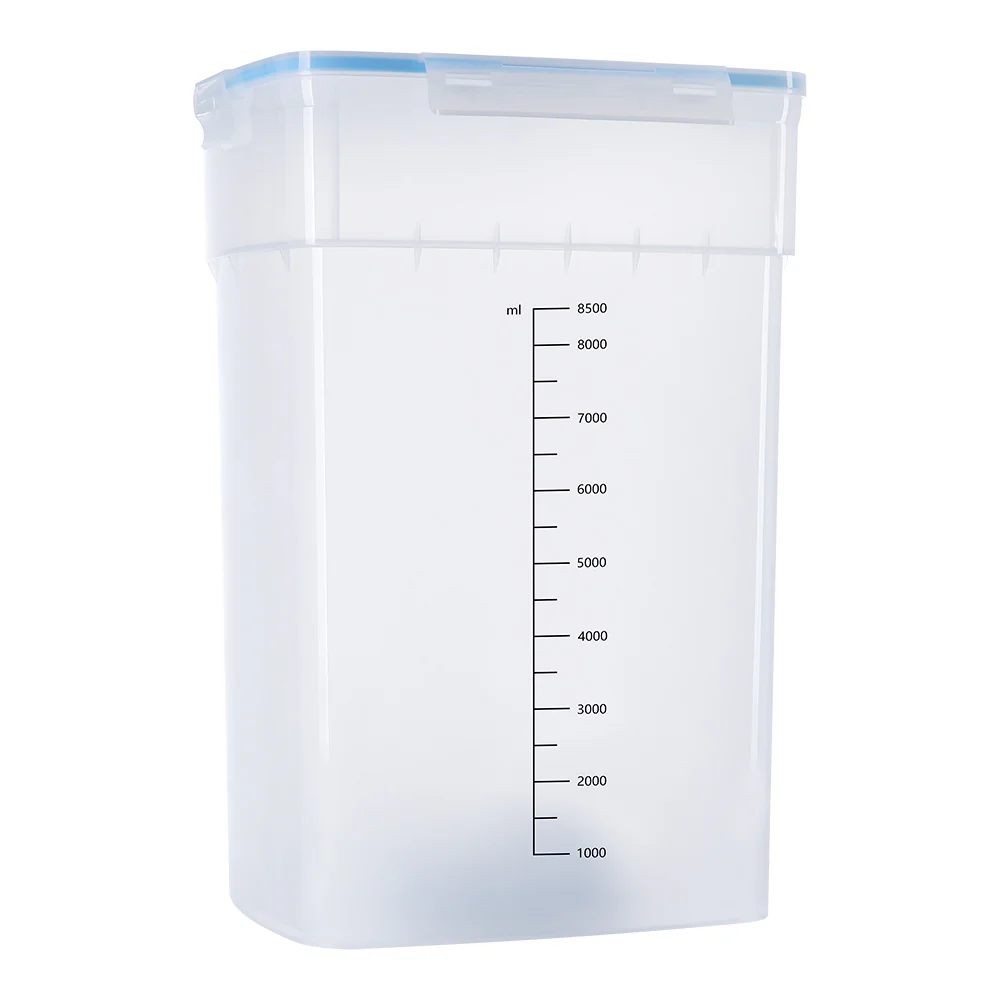

- Enclosed Washing Bucket
- The washing bucket can accommodate larger size models and is compatible with all LCD resin printers of 8.9-inch and below on the market.
- After Cleaning & Curing
- The material properties of the resin are significantly improved after cleaning and curing.
Parts List
Washing container
Tool set
Power cord
User manual
Washing basket
Reflector
Cure platform
Service card
Washing rack
|
|
|
| Rated Power | 40W | 25W |
| Input Voltage | AC 110V/220V ±10% | AC 110V/220V ±10% |
| Machine Size | 290mm(L)*270mm(W)*479mm(H) | 225mm(L)*235mm(W)*365mm(H) |
| Washing Size | 192mm(L)*120mm(W)*290mm(H) | 120mm(L)*74mm(W)*165mm(H) |
| Curing Size | 190mm(D)*245mm(H) | 140mm(D)*165mm(H) |
| Multiple Washing Methods | Basket washing & Hanging cleaning | Basket washing & Hanging cleaning |
| Time Selection | 1-60mins | 1-60mins |
| Safe Auto-pause | √ | √ |
| Weight | ~6.5kg | 3.7kg |
| Other | Reflector L-shape Strip Light |
Reflector |
